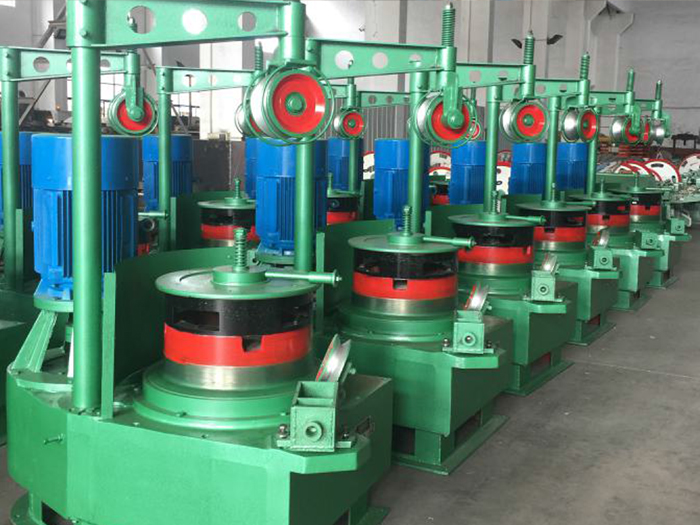

The LW series pulley wire drawing machine is a traditional wire drawing equipment. It is especially suitable for drawing high, medium and low-carbon standard parts with a diameter of less than ?8.0mm. Unloading wire with any weight below ton, the front wire can be unloaded, and it is especially suitable for the turnover use of the fastener industry. According to the customer's drawing requirements, single-head and multi-head combinations can be used. The gearbox noise of this machine is less than that of similar products, and the gears are thick and variable frequency speed regulation.
機臺主要技術參數(shù)Main technical parameters of the machine
| 典型型號 Model | LW10/560鋼絲 | LW10-560低碳絲 | LW10-560銅絲,鋁絲 | |
| 卷筒直徑 Capstan diameter | (mm) | 560 | 560 | 560 |
| 拉拔道次 Drawing passes | (draft) | 10 | 10 | 10 |
| 進線強度 Inlet line intensity | (draft) | ≤1100 | ≤500 | ≤500 |
| 最大進線直徑（mm) Max.Inlet size diameter | 6.5 | 6.5 | 6.5 | |
| 最小出線直徑（mm) Min.Outlet size diameter | 2.0 | 1.8 | 1.8 | |
| 總壓縮率 （％) Gross compression rate | 90.53 | 92.3 | 95 | |
| 拉拔速度j Drawing speed | :m/min) | 360 | 360 | 360 |
| 電機功率 Motor power | (Kw) | 22 | 15 | 15-18.5 |
| 拖動方式 Drag way | 用戶可選用：普通電機、變頻電機 | |||
| 備注 Note | 拉拔道次與卷筒直徑可根據(jù)用戶要求定制 | |||
