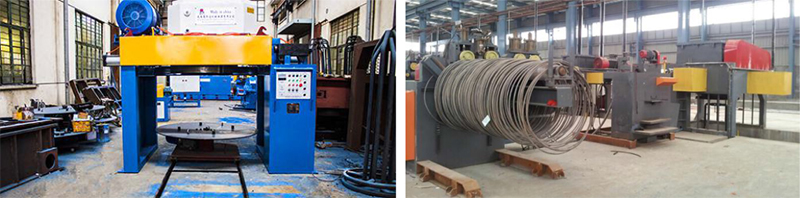

Inverted Wire Drawing Machine Automatic Production Line

Automatic uncoiling machine+ automatic cutting wire machine +inverted vertical wire drawing machine that we designed and made on the basis of overseas advanced technology is a special production line of a heavy coil feeding wire. It’s easy to operate with high safety.The unique high-performance humanized design is the first selection device of drawing high middle low carbon wire. It is widely used in metal products, bolt strand, thick diameter wire drawing industry, favored by industry experts, visionary entrepreneurs

Feeding wire adopts programmable frequency control, make that linkage stability between uncoiler and wire drawing machine is high. moving and high stability. For the safety design of the equipment, use several safety protection devices, to make the device is able to run more stable, more safe and reliable.Wire feeding process is fully automatic without manual operation.Cutting mechanism control is same as the wire feeding machine. Transmission are controlled by the hydraulic. It is easy and flexible to operate. Cutting process is full automatic ,cutting effect is nice.Inverted wire drawing machine control is safe operation mode. Emergency stop, disordered wire stop, broken wire stop and electric fault stop, braking system are safe and reliable.Easy and flexible operation, humanized design makes the whole line process more convenient and reliable operation, the whole line main electrical components, hydraulic parts,all adopt the international well-known brand.

倒立式拉絲機全自動生產線技術參數

自動送線部分 Auto feeding wire part		自動切削部分 Auto cutting part		倒立式拉絲機部分 Inverted wire drawing machine part
項目 Item	參數 Parameter	項目 Item	參數 Parameter	項目 Item	參數 Parameter
主動輥輪直徑 Driving roller diameter	Φ250mm	切削形式 Cutting form	內置式旋轉切削 Built-in rotary cutting	卷筒直徑 Capstan diameter	Φ1200 一 1400mm
轉速 Rotating speed	≤ 50m/min	切削流程 Cutting process	自動 Auto	最大進線直徑 Max inlet wire diameter	042mm
電機功率 Motor power	5.5 - 11kw	電機功率 Motor power	0.75-1.1kw	進線強度 Inlet wire strength	≤ 500Mpa
送線形式 Pay-off Form	單動、聯動 Single action，linkage	整機移動形式 Overall moving form	液壓、手、自動控制 Hydraulic，hand Auto control	壓縮率 Compression rate	25%
壓輪形式 Pinch roller form	可調液壓控制 Adjustable hydraulic control	變速箱 Gear box	擺線針輪 Cycloidal pinwheel	拉拔速度 Drawing speed	0.5 一 2.5m/s
變速箱 Gear Box	雙聯齒輪傳動 Double gear drive	切削直徑 Cutting diameter	Φ25 一 42mm	電機功率 Motor power	75 _132kw
送線直徑 Feeding wire diameter	Φ25 - 42mm	切削材料強度 Cutting material strength	≤500Mpa	控制方式 Control form	交流變頻調速 AC frequency control
材料強度 Inlet wire strength	≤ 500Mpa	控制方式 Control form	交流變頻調速 AC frequency control	減速箱 Reduction gearbox	硬齒面齒輪傳動 Hardened gear drive
控制方式 Control Form	交流變頻調速 AC frequency control
