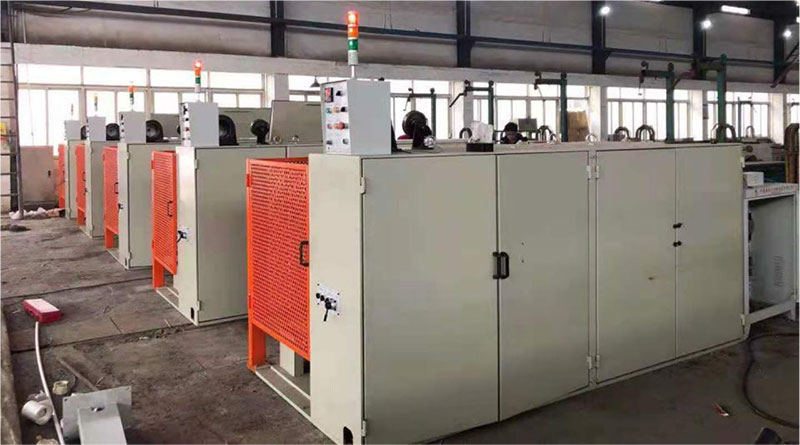

Integrated Water Tank Type Wire Drawing Machine

LT1 3-1 9/300-350型整體式水箱一體機技術參數

加工材料 Raw material		中、高碳鋼絲 Middle or high carbon steel	啟動時間Start time	s	5-30
進線直徑 Input	mm	≤1.6-3.0	驅動電機功率 Main motor	kw	30/37/45
出線直徑 Output	mm	≤0.5-1.0	電控方式 Electrical Control		PLC控制、多功能自動保護 Multi-function and automatic protection
進線抗拉強度 Input tensile strength	MPa	≤1250	塔輪表面Capstan		軟面/噴涂Coated type
出線抗拉強度 Output tensile strength	MPa	2250	噪音Noise	db	<82
道次 Max.Dies	draft	13-19	潤滑冷卻方式 Cooling type		浸入式循環冷卻 Immersion circulating cooling
平均壓縮率 Average compression ratio	%	14.17	潤滑箱容量 Water tank volume	L	420
拉拔速度 Speed	m/s	10(變頻無級調速) (adjustable)	外形尺寸Dimension	mm	3180×1510×1430
塔輪結構 Capstan structure		分體式Split type	重量Weight	kg	4300
放線工字輪 Pay-off		用戶自定Customized

The water tank integrated machine is one of the LT series water tank drawing machines independently developed and improved by our company. (The main motor, water tank, and take-up are on the same base; four-axis fully active and passive capstan self-adjusting design , The drawing capstan is a split type, the final die adopts a universal design, and the double meter design can meet the requirements of high-precision metering. The wind cooling of the transmission box can effectively reduce the working temperature; in addition to the special improvement of the new anti-leakage wheel is used to prevent the lubricating fluid from leaking out of the machine body along the capstan shaft;Suitable for medium and high carbon metal wire, suitable for drawing special purpose steel wire such as rope steel wire, spring steel wire and stainless steel wire. The whole machine is hoisted; the synchronous belt drive mode and control mode are PLC frequency conversion control and soft start control. It has obvious advantages of energy saving, space saving, low invest and low labor intensity of workers. It greatly saves production costs for users and improves the competitiveness of products in the market, which is very popular in the market.
